Reaching New Heights: 50 Years of the CN Tower

On 26 June 1976, Toronto's CN Tower officially opened to the public. Fifty years later, it remains one of the most recognisable structures on the planet, with a well-deserved place on the American Society of Civil Engineers' Seven Wonders of the Modern World list.

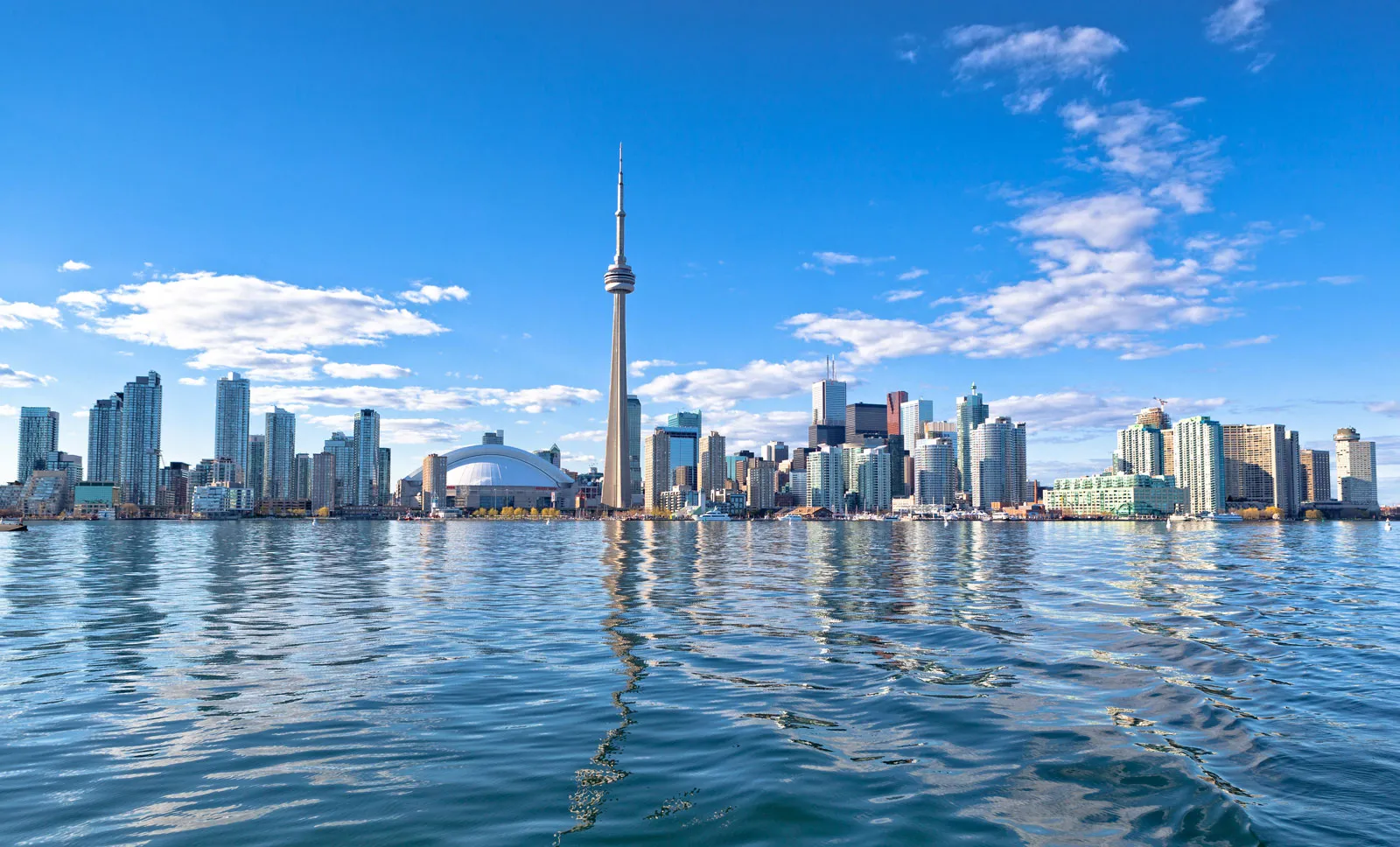

At 553.3 metres tall, the tower was built to solve a growing problem. Toronto's skyline was expanding rapidly, and broadcasters were struggling with signal interference caused by the city's new high-rise buildings. What began as a communications solution quickly became one of the most ambitious engineering projects of the 20th century.

Building Beyond the Rulebook

When construction began in 1973, there was no established playbook for building the world's tallest free-standing structure.

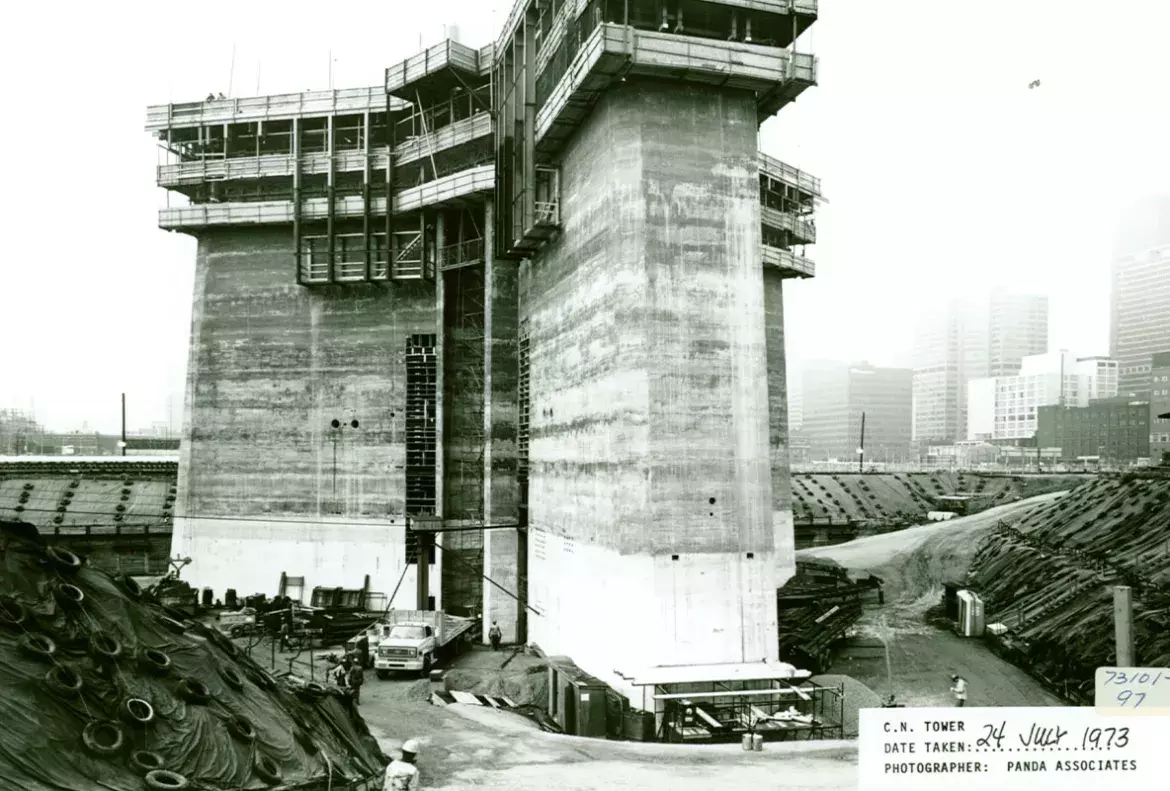

56,000 tonnes of earth and shale were excavated at the tower base for the massive Y-shaped foundation. More than 7,000 cubic metres of concrete and hundreds of tonnes of reinforcing steel created the base that would support the tower's enormous height and weight.

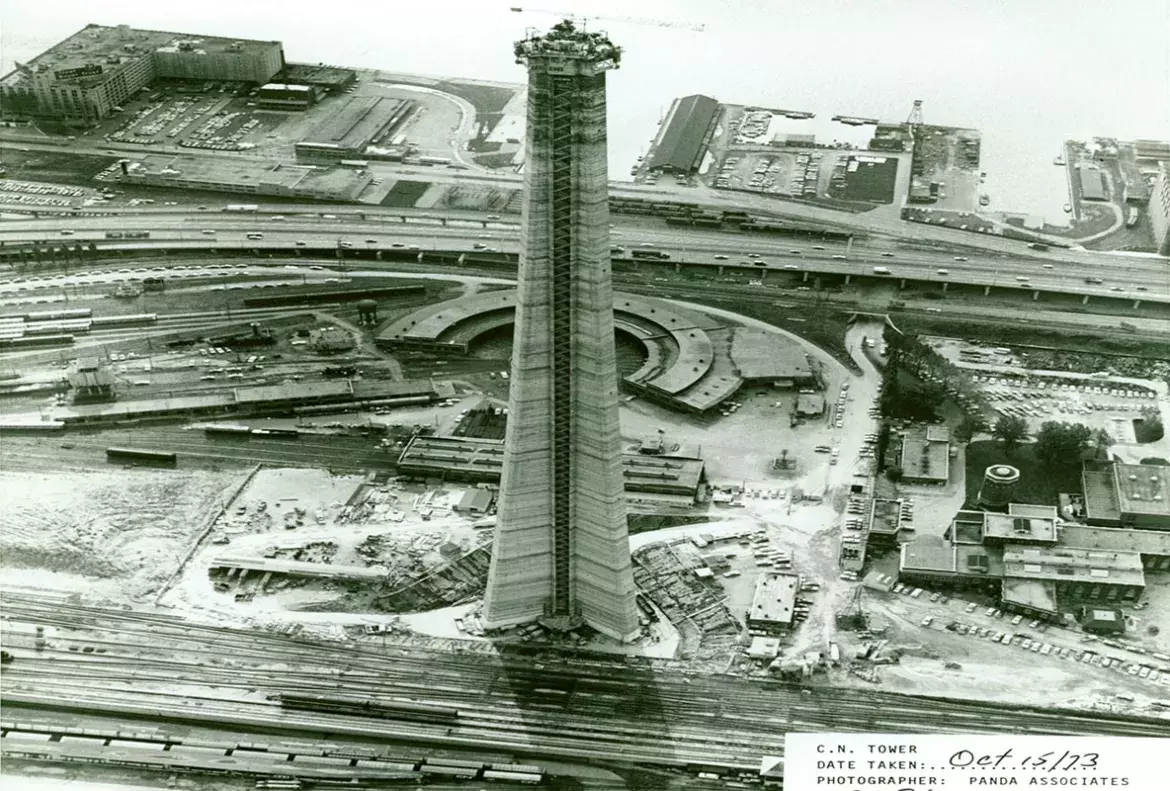

From there, crews used an innovative slipform construction method. Hydraulic jacks continuously lifted the formwork while concrete was poured around the clock, allowing the tower to grow by roughly six metres every day.

The process ran continuously for months, ultimately using more than 40,000 cubic metres of concrete and pushing the main shaft to a height of 335 metres.

Engineering in the Sky

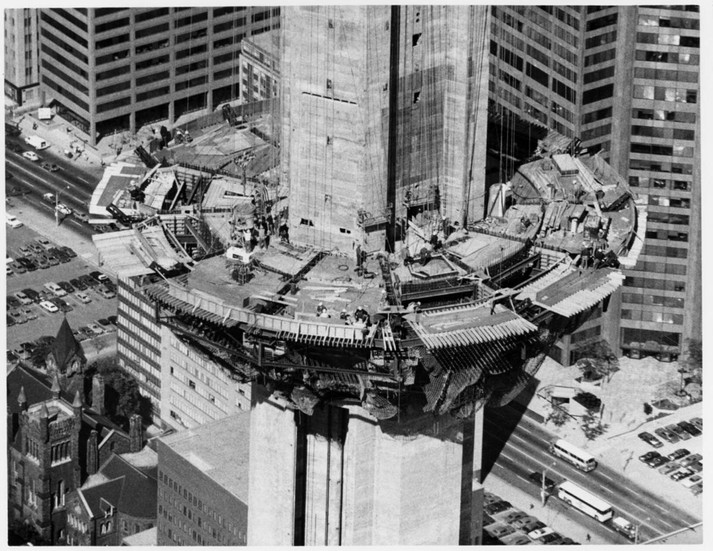

Constructing the observation decks presented an entirely new challenge.

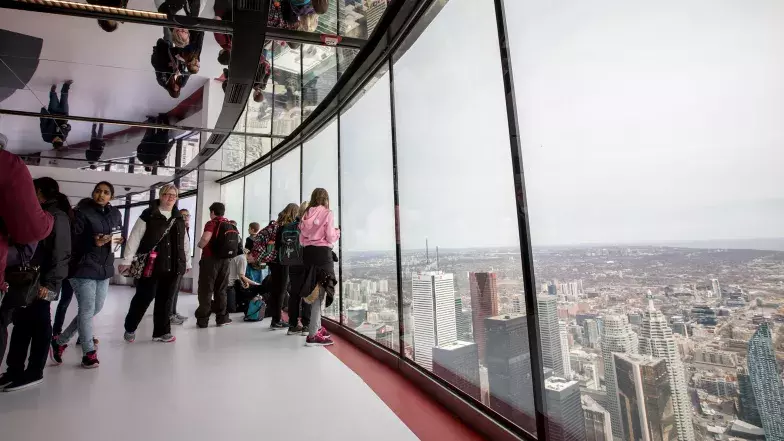

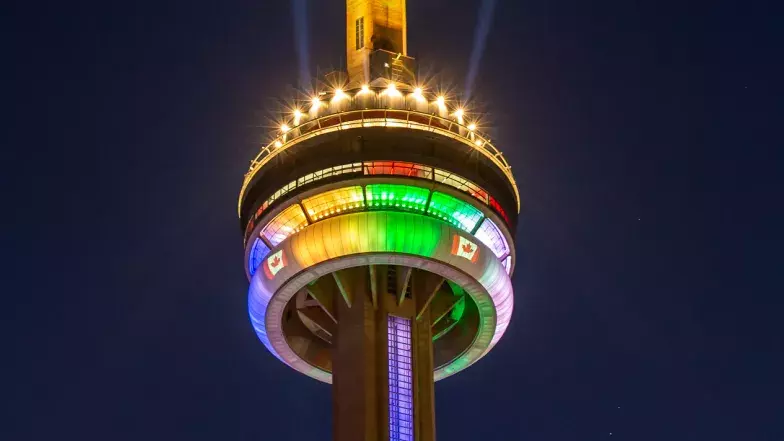

The tower's distinctive pod, housing the observation levels and revolving restaurant, had to be built hundreds of metres above the ground. Massive concrete brackets were formed and lifted into position using temporary steel structures and a complex hydraulic jacking system.

Then came the final piece of the puzzle: the antenna.

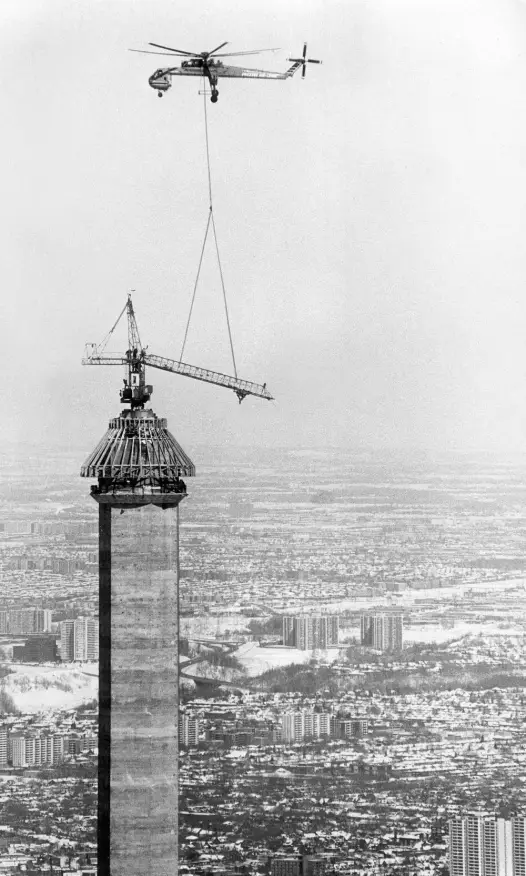

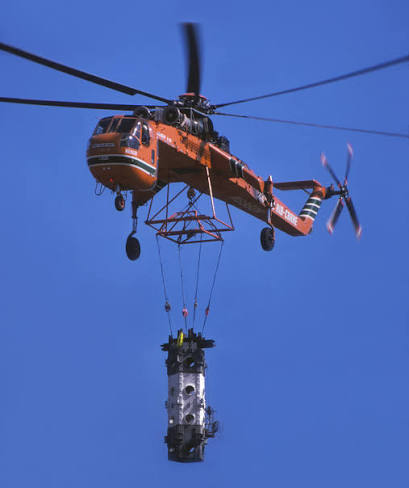

To complete the structure, engineers enlisted a Sikorsky Skycrane helicopter known as "Olga". The aircraft lifted 36 individual antenna sections into place, with crews bolting each segment together high above the city. By using Olga, the installation of the antenna took only three and a half weeks instead of the originally planned six months.

A Record That Stood for Decades

The CN Tower claimed the title of the world's tallest free-standing structure before construction even finished, a record it would hold for 34 years.

The CN Tower showcased Canadian engineering expertise on a global stage. Many of the construction techniques, sequencing methods and design solutions developed for the project had never been attempted at that scale before.

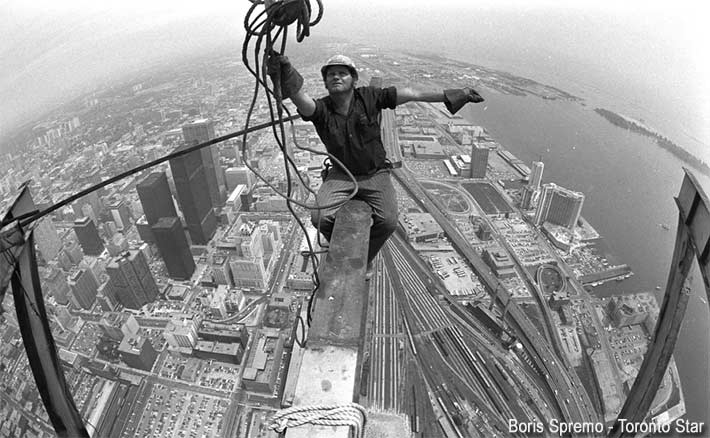

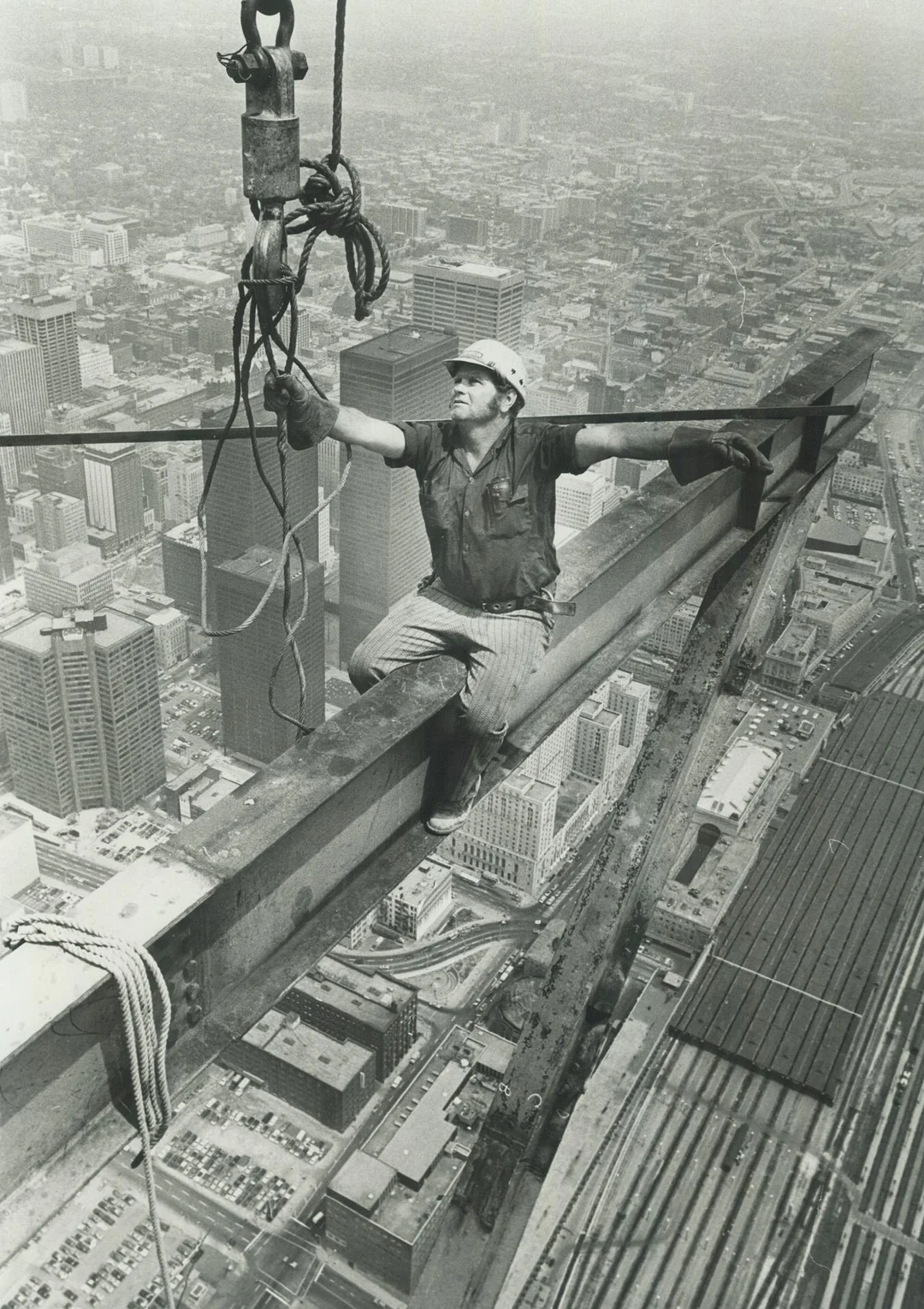

More than 1,500 workers contributed to the five-year project, overcoming challenges that ranged from extreme heights to the logistical complexity of continuous concrete placement.

Why It Still Matters

The CN Tower endures because it represents what happens when engineers are asked to solve a problem no one has solved before.

Half a century after opening, it remains more than a landmark. The CN Tower shows us that great infrastructure doesn't just respond to the needs of today; it redefines what’s possible for generations to come.
